Discover Versatility with Universal Dovetail Mounting Plates - Your Key to Precision and Adaptability
Discover the ultimate in versatility and precision with our Universal Dovetail Mounting Plates. Crafted from high-quality aluminum alloy, these plates are designed to meet the demanding needs of astronomers, astrophotographers, and stargazers. Available in various lengths—100mm, 120mm, 210mm, 300mm, and 400mm—these mounting plates provide the stability and adaptability required for a seamless telescope setup.
Product Descriptions:

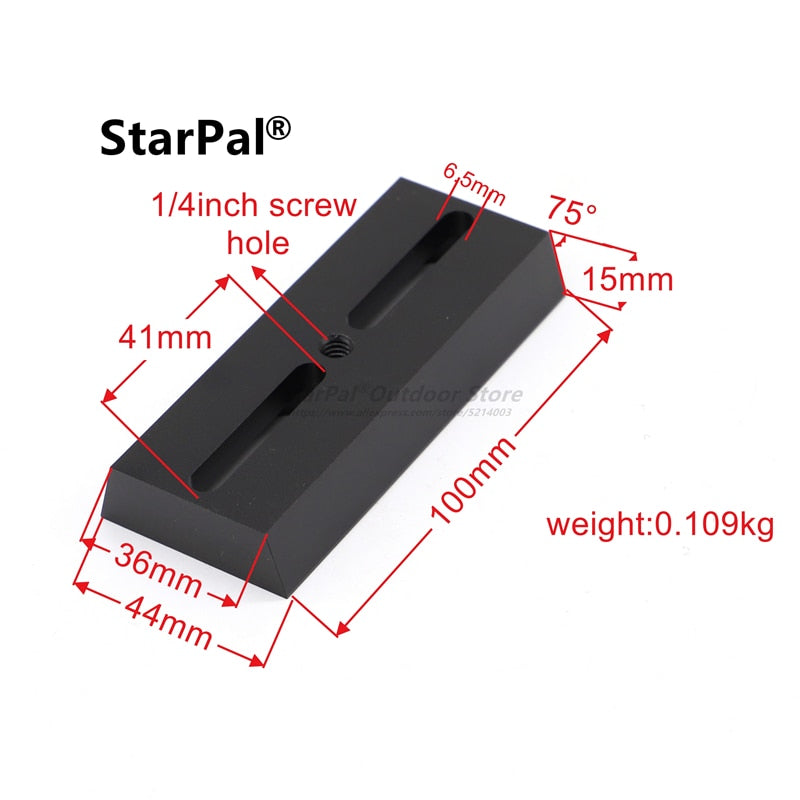

Type 1 - 100mm Dovetail Mounting Plate:
- Length: 100 mm
- Material: Aluminum alloy
- Diameter of Screw Hole: 6.5mm
- Top Width: 36mm
- Bottom Width: 44mm
- Package Includes: 1 Dovetail Mounting Plate

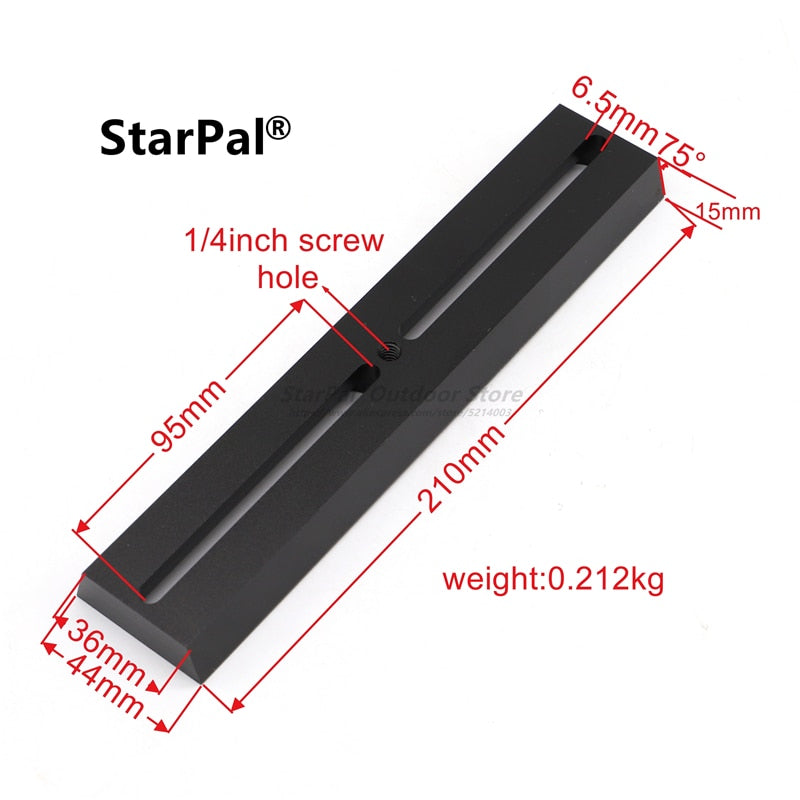

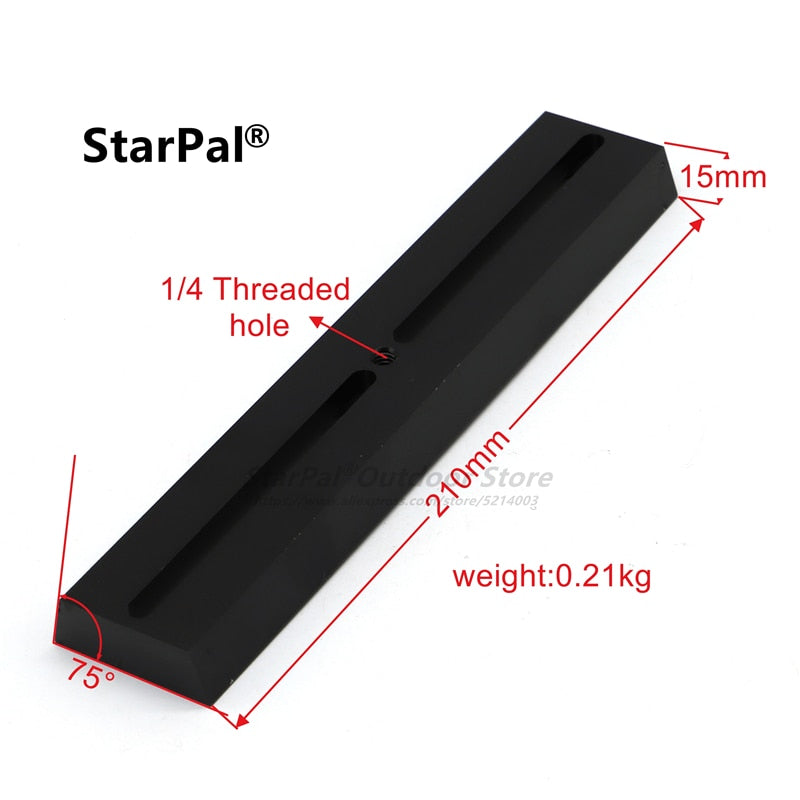

Type 2 - 210mm Dovetail Mounting Plate:
- Length: 210 mm
- Material: Aluminum alloy
- Diameter of Screw Hole: 6.5mm
- Top Width: 36mm
- Bottom Width: 44mm
- Package Includes: 1 Dovetail Mounting Plate
Type 3 - 300mm Dovetail Mounting Plate:
- Length: 300 mm
- Material: Aluminum alloy
- Diameter of Screw Hole: 6.5mm
- Top Width: 36mm
- Bottom Width: 44mm
- Package Includes: 1 Dovetail Mounting Plate

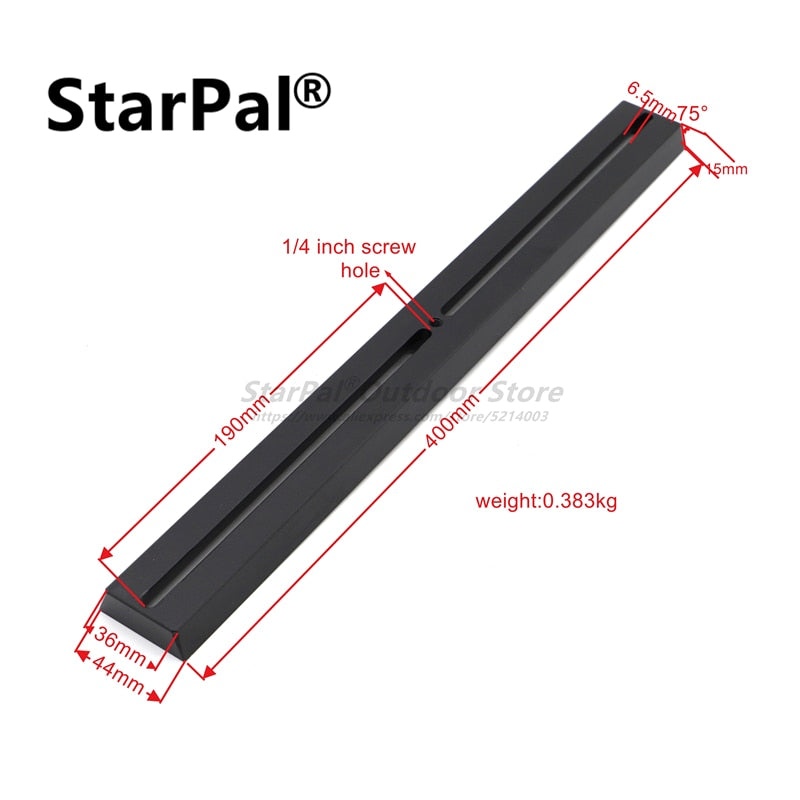

Type 4 - 400mm Dovetail Mounting Plate:
- Length: 400 mm
- Material: Aluminum alloy
- Diameter of Screw Hole: 6.5mm
- Top Width: 36mm
- Bottom Width: 44mm
- Package Includes: 1 Dovetail Mounting Plate

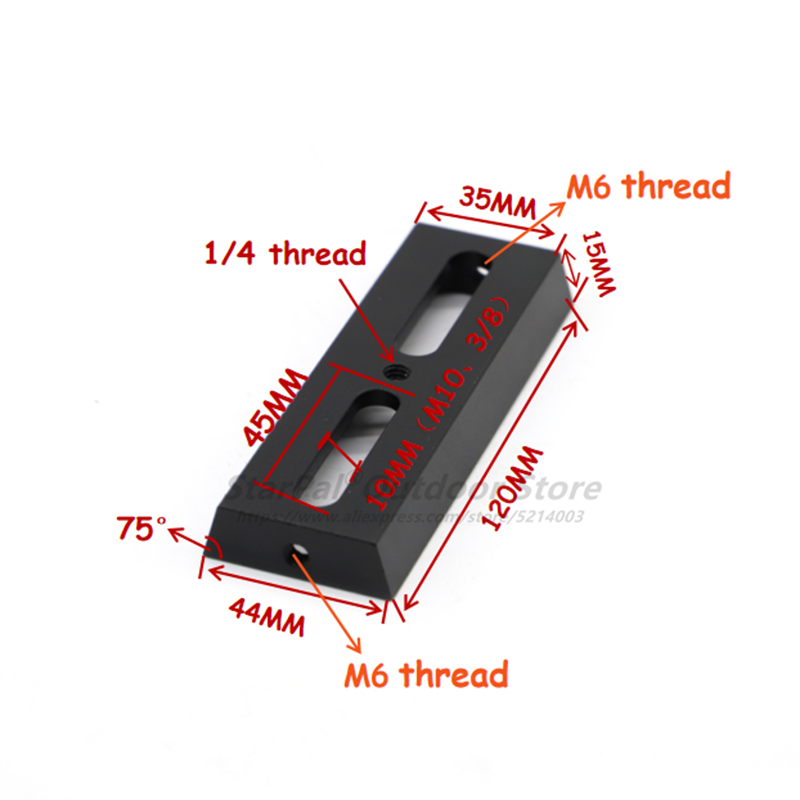

Type 5 - 120mm Dovetail Mounting Plate:
- Length: 120 mm
- Bottom Width: 44mm
- Angle: 75 degrees
- Weight: 120g
- Center Hole: 1/4"
- Middle Slotted Width: 10mm
- Slot Length: 105mm
Key Features
- High-Quality Construction: Crafted from durable aluminum alloy, these dovetail plates are built to withstand the demands of astronomy and astrophotography.
- Precise Design: The plates feature a 6.5mm diameter screw hole on both sides for secure attachment to your equipment. The top width measures 36mm, while the bottom width is 44mm, providing stability and adaptability.
- Multiple Length Options: Choose from various lengths, including 100mm, 210mm, 300mm, and 400mm, to suit your telescope setup and mounting requirements.
- Type 5 Angle Plate: The 120mm dovetail mounting plate with a 75-degree angle offers versatility and ease of use. It includes a 1/4" center hole and a 10mm middle slotted width.
Applications of the Universal Dovetail Mounting Plate
The Universal Dovetail Mounting Plate is ideal for a variety of applications, making it a versatile addition to your astronomical toolkit:
- Astrophotography: Securely mount your telescope and accessories, ensuring stable and precise imaging of celestial objects. Capture stunning images of distant galaxies, nebulae, and star clusters with ease.
- Stargazing: Enhance your visual observation experience by ensuring your telescope remains securely in place, reducing vibrations and improving clarity.
- Telescope Alignment: Achieve perfect alignment of your telescope for more accurate tracking and observation of celestial bodies.
- Accessory Mounting: Use the dovetail plate to attach various accessories such as cameras, guide scopes, and finderscopes, expanding the functionality of your telescope setup.
Benefits of the Universal Dovetail Mounting Plate
- Enhanced Stability: The robust construction and secure attachment capabilities ensure a stable platform for your telescope and accessories, improving observation and imaging quality.
- Versatile Compatibility: Designed to fit a wide range of telescopes and accessories, offering flexibility and ease of integration into your existing setup.
- Durable and Reliable: Made from high-quality materials, the dovetail plate is built to withstand regular use and harsh outdoor conditions.
- Improved Observation Experience: By providing a secure and stable connection, the dovetail plate enhances your overall observation experience, allowing for clearer and more detailed views of celestial objects.
- Customizable Setup: The multiple length options and precise design allow you to customize your telescope setup for optimal performance and convenience.
What is the Universal Dovetail Mounting Plate Used For?
The Universal Dovetail Mounting Plate is used to securely mount telescopes and various accessories onto compatible setups. It enhances the stability and precision of your setup, making it essential for both visual observation and astrophotography. This plate is a critical component for anyone looking to improve the performance and accuracy of their telescope system.
Usage of the Universal Dovetail Mounting Plate
Setting Up the Dovetail Mounting Plate
- Align the Plate: Position the dovetail plate on the optical tube of your telescope, ensuring it is aligned correctly.
- Secure the Screws: Use the provided screws to securely fasten the dovetail plate in place. Tighten the screws evenly to ensure a stable and secure attachment.
- Mount Your Telescope or Accessories: Once the dovetail plate is securely attached, mount your telescope or accessories. Ensure they are firmly in place to avoid any movement during observations or imaging sessions.
Observation Tips
- Check Stability: Regularly check the stability of your setup to ensure all components remain secure during use.
- Balance Your Setup: Properly balance your telescope and accessories to prevent strain on the mount and improve tracking accuracy.
- Regular Maintenance: Periodically inspect the dovetail plate and mounting hardware for any signs of wear or loosening and address them promptly to maintain optimal performance.
Tips for Using the Universal Dovetail Mounting Plate
- Proper Alignment: Ensure the dovetail plate is aligned correctly to avoid any imbalances during use.
- Secure Fastening: Double-check that all screws and mounting hardware are securely tightened to maintain stability.
- Regular Inspections: Regularly inspect the components for any signs of wear or loosening and address them promptly.
- Optimize Imaging Location: Choose imaging locations with minimal light pollution to maximize observation quality.
- Use a Remote Shutter: For capturing images, use a remote shutter or timer function on your camera to avoid shaking the device during the shot.
Frequently Asked Questions (FAQ)
Q1: Can I use the Universal Dovetail Mounting Plate with any telescope?
A1: The dovetail plate is designed to be compatible with a wide range of telescopes and accessories. It is recommended to check the specific dimensions and compatibility of your telescope before purchasing.
Q2: How difficult is it to install the Universal Dovetail Mounting Plate?
A2: The installation process is straightforward and can be completed with basic tools. The kit includes all necessary components and instructions for a hassle-free setup.
Q3: Can I attach multiple accessories to the dovetail plate?
A3: Yes, the dovetail plate provides ample space for attaching multiple accessories, depending on their size and configuration.
Q4: Is the dovetail plate durable enough for outdoor use?
A4: Yes, the dovetail plate is crafted from high-quality aluminum alloy, making it durable and reliable even in harsh outdoor conditions.
Q5: How does the dovetail plate improve astrophotography?
A5: The dovetail plate provides a stable and secure platform, reducing vibrations and allowing for precise alignment, which are crucial for capturing sharp and detailed astrophotographs.
Why Should You Choose the Universal Dovetail Mounting Plate?
- Superior Stability: Achieve enhanced stability for your telescope and accessories, ensuring clearer and more accurate images.
- Versatile Customization: The dovetail plate offers flexibility for attaching various accessories, allowing you to customize your setup.
- Easy Installation: The kit is easy to install, providing a quick upgrade to your astronomy setup without requiring extensive modifications.
- Durable Construction: Made with high-quality materials, the dovetail plate is designed to provide long-term reliability and consistent performance.
- Multiple Length Options: The availability of various lengths (100mm, 120mm, 210mm, 300mm, 400mm) allows you to choose the perfect fit for your telescope setup.
Specifications of the Universal Dovetail Mounting Plate
- Material: High-strength aluminum alloy
- Finish: Anodized aluminum process
- Compatibility: Telescopes and accessories
- Lengths: 100mm, 120mm, 210mm, 300mm, 400mm
- Top Width: 36mm
- Bottom Width: 44mm
- Screw Hole Diameter: 6.5mm
- Weight: Lightweight yet sturdy construction
Package Content
When you purchase the Universal Dovetail Mounting Plate, you will receive:
- One Dovetail Mounting Plate: Provides a secure and versatile platform for attaching telescopes and accessories.
- Screws and Mounting Hardware: Ensures secure attachment of the dovetail plate to your optical tube.
- Instruction Manual: Detailed instructions on how to install and use the dovetail plate.
Order Now
Upgrade your astronomical setup with the Universal Dovetail Mounting Plate today. Enjoy enhanced stability, versatile mounting options, and an improved observing experience. Whether you are a seasoned astronomer or a dedicated stargazer, this dovetail plate is an essential addition to your telescope setup. Order now and take your celestial observations to the next level.
![Universal 300mm Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/S808900c85197407c810ed0d7a7b7d008I.jpg?v=1693953209&width=1445)
![Universal 100mm 120mm 210mm 300mm 400mm Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/products/H6539ec5d9f4e4b27bbe5fe27bc258e4eN.jpg?v=1693953206&width=1445)
![Universal 400mm Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/Sfac78e3a72da4ff392672e0e3978da6df.jpg?v=1693953207&width=1445)
![Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/S11f31b0ee49241c3836621a07c072e7fN.png?v=1693953211&width=1445)
![Universal 210mm Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/S8b2012f3a52e4a8e817d88678ac5ac31o.jpg?v=1693953213&width=1445)
![Universal 100mm Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/S86b51ca426bf44a3ad7191eed757b6718.jpg?v=1693953216&width=1445)
![Universal Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/H3d2c3cbca34b44da9f9ec286320fcf05d.jpg?v=1693953218&width=1445)

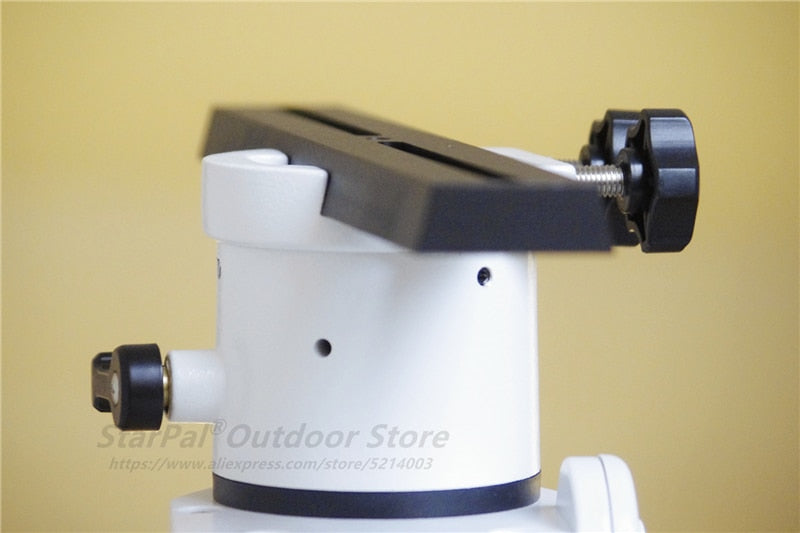

![Dovetail Mounting Plate](http://astrophotographylens.com/cdn/shop/files/Hb5e4666e0b244b72b8732e4d3aa79a4de.jpg?v=1693953220&width=1445)
