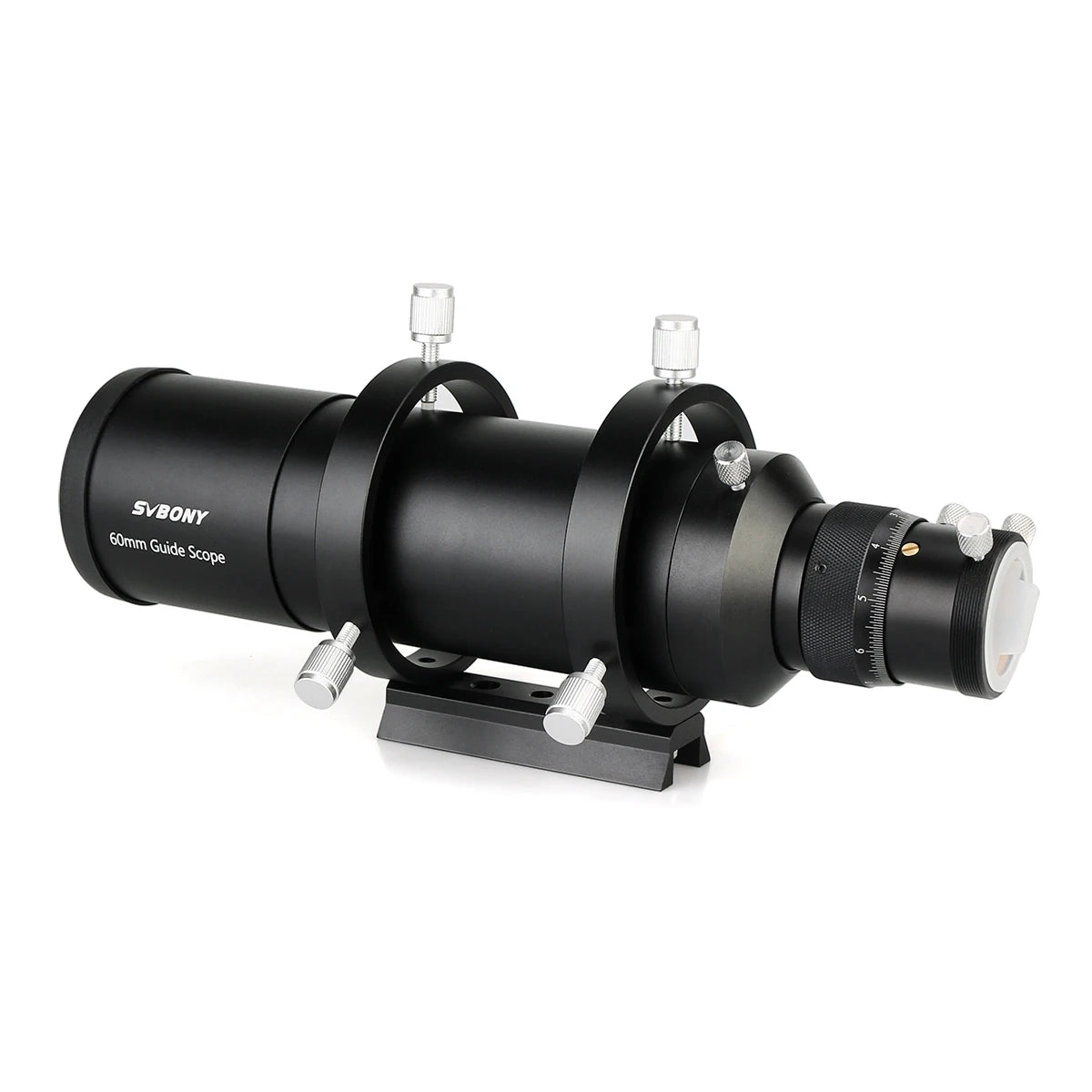

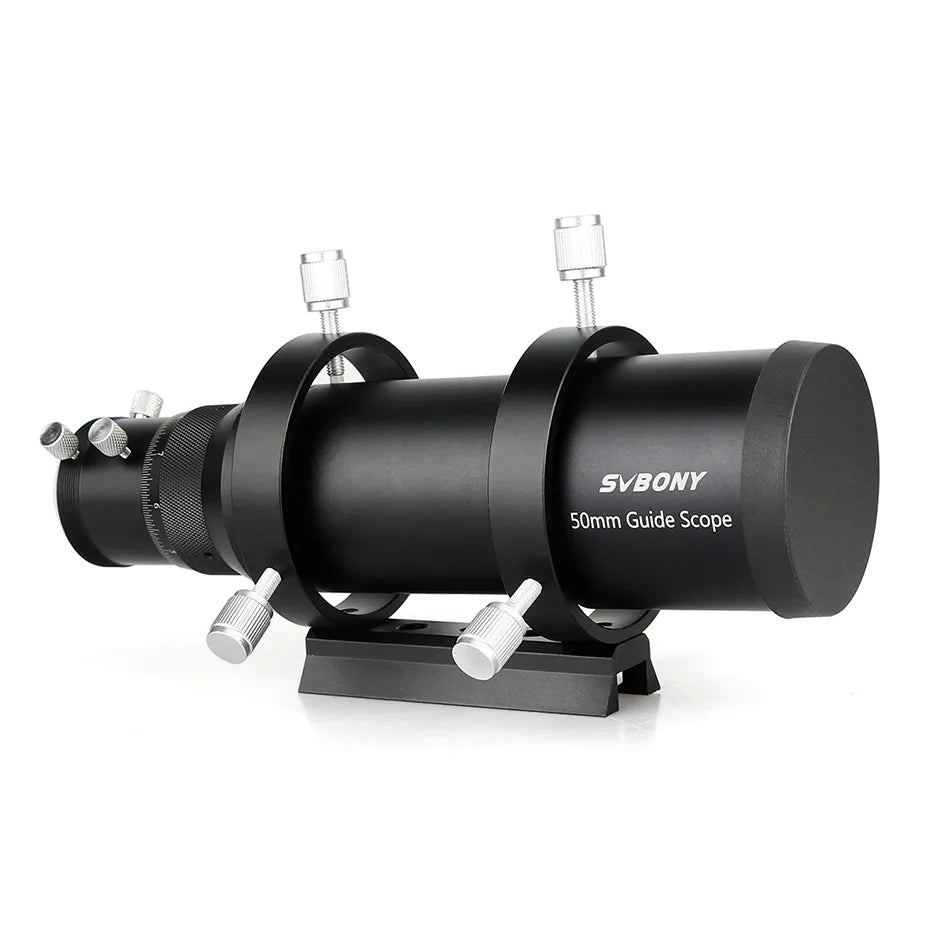

Svbony SV106 50mm Guide Scope

Svbony SV106 50mm Guide Scope

Regular price $119.00 USD
Regular price Sale price $119.00 USD
Sale Sold out

FREE SHIPPING

Size

Discover the precision and versatility of the Svbony SV106 50mm Guide Scope – your essential companion for astronomical observations. The Svbony SV106 50mm Guide Scope combines advanced features to elevate your stargazing experience.

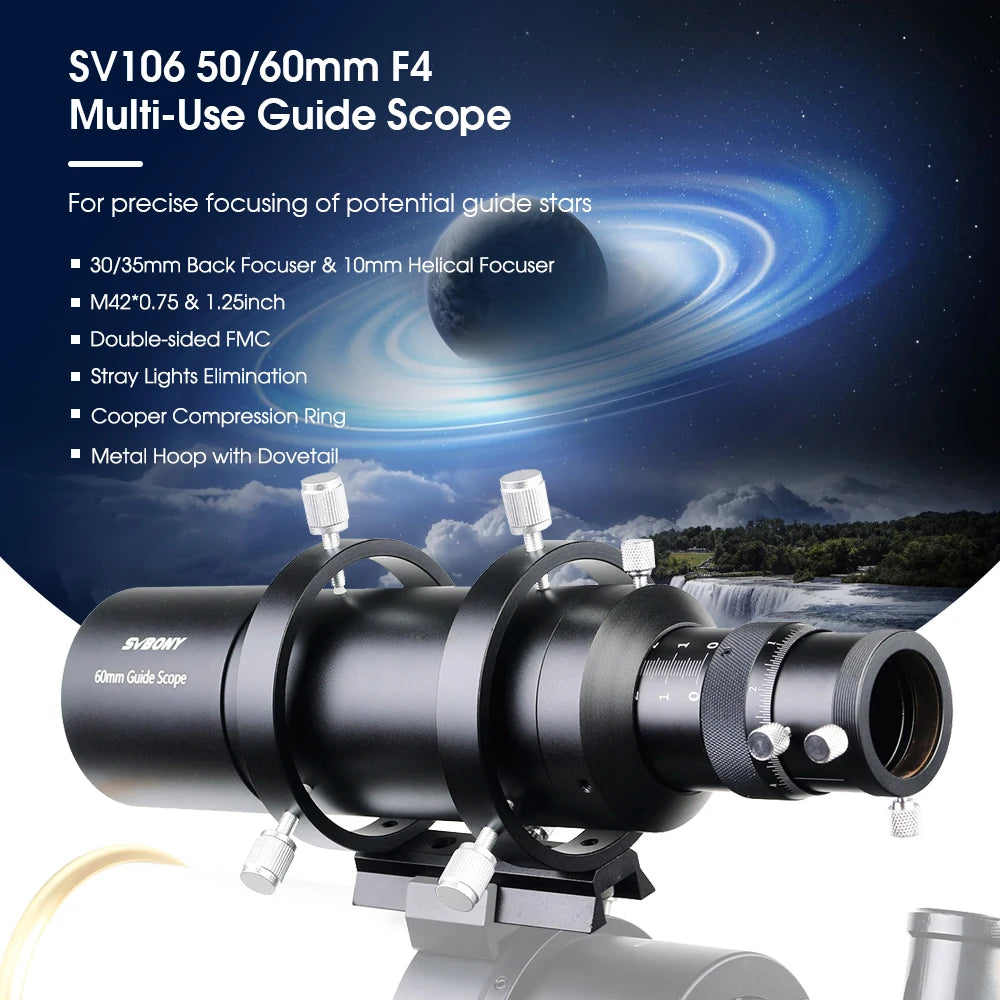

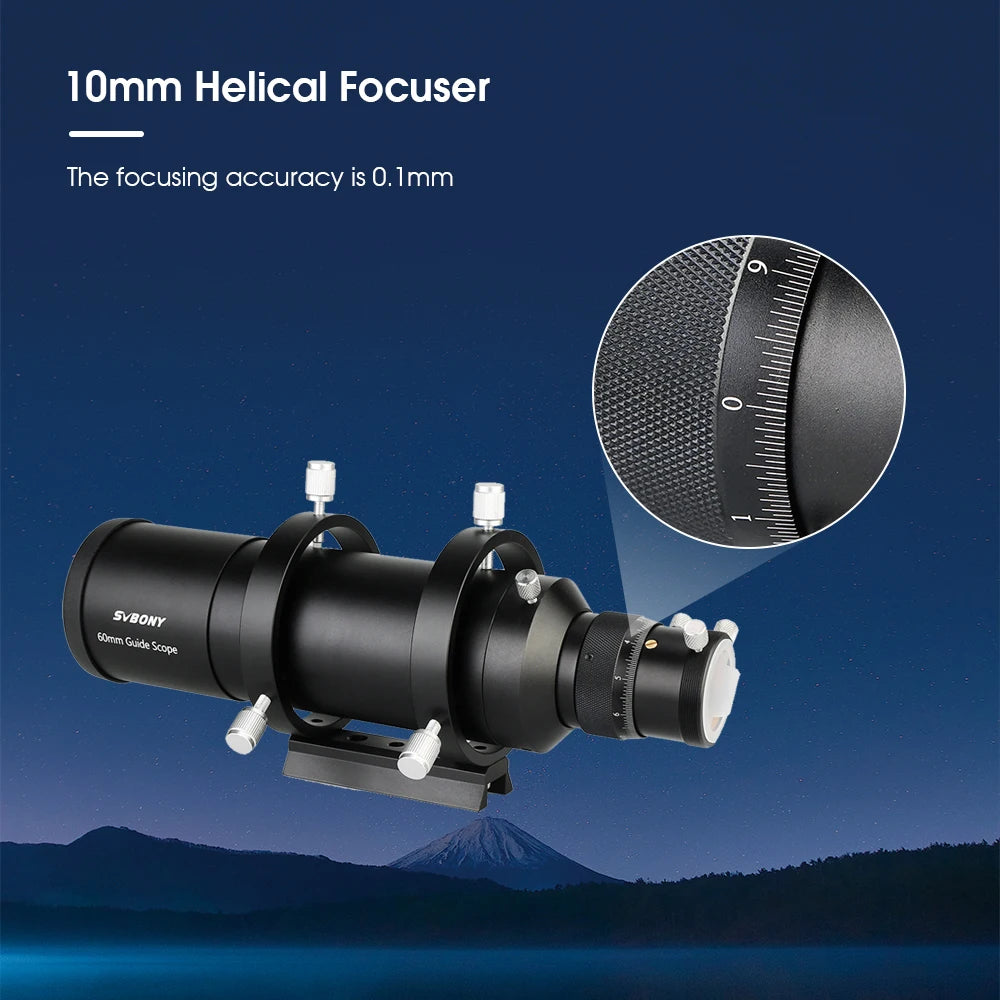

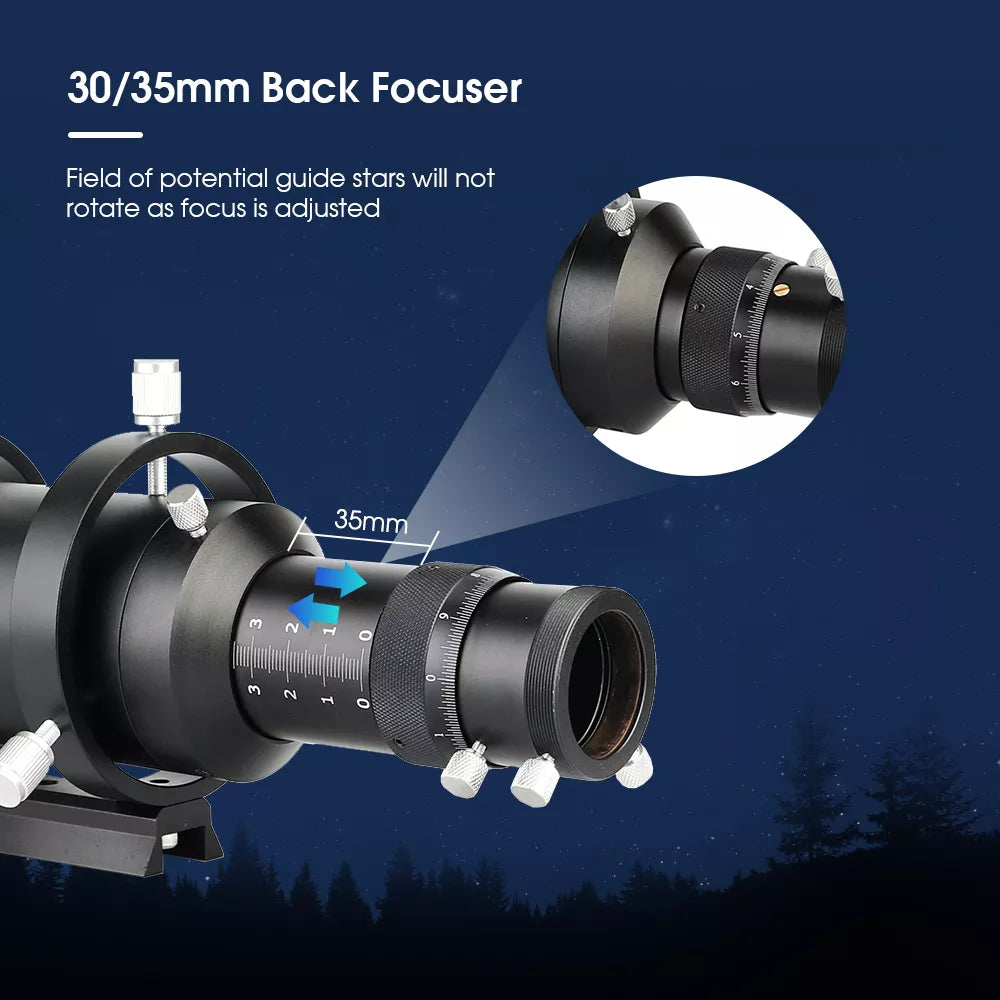

Unleash the potential of the Svbony SV106 50mm Guide Scope with its 30/35mm back focuser and 10mm helical focuser. This dynamic combination allows for swift and precise adjustments, ensuring you capture the stars you desire with ease. The 10mm focusing stroke delivers clear and detailed images, with a focusing accuracy up to 0.1mm.

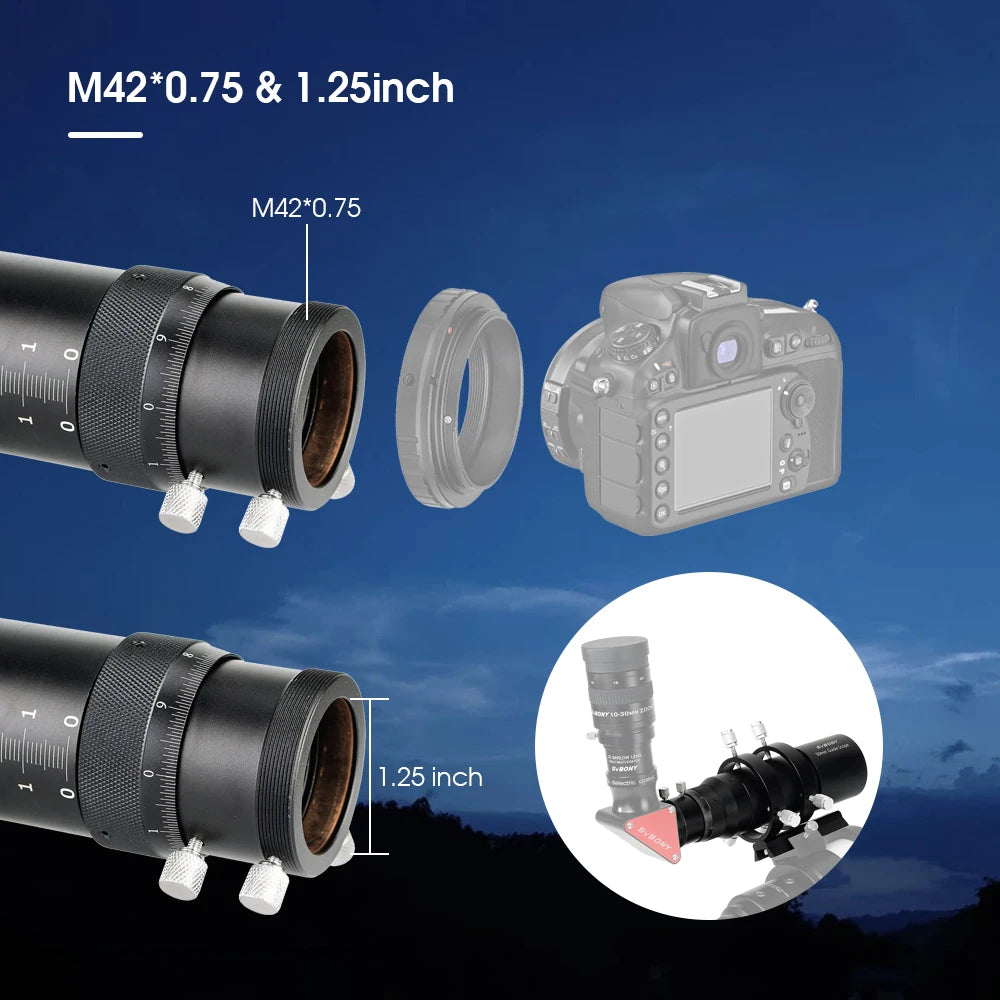

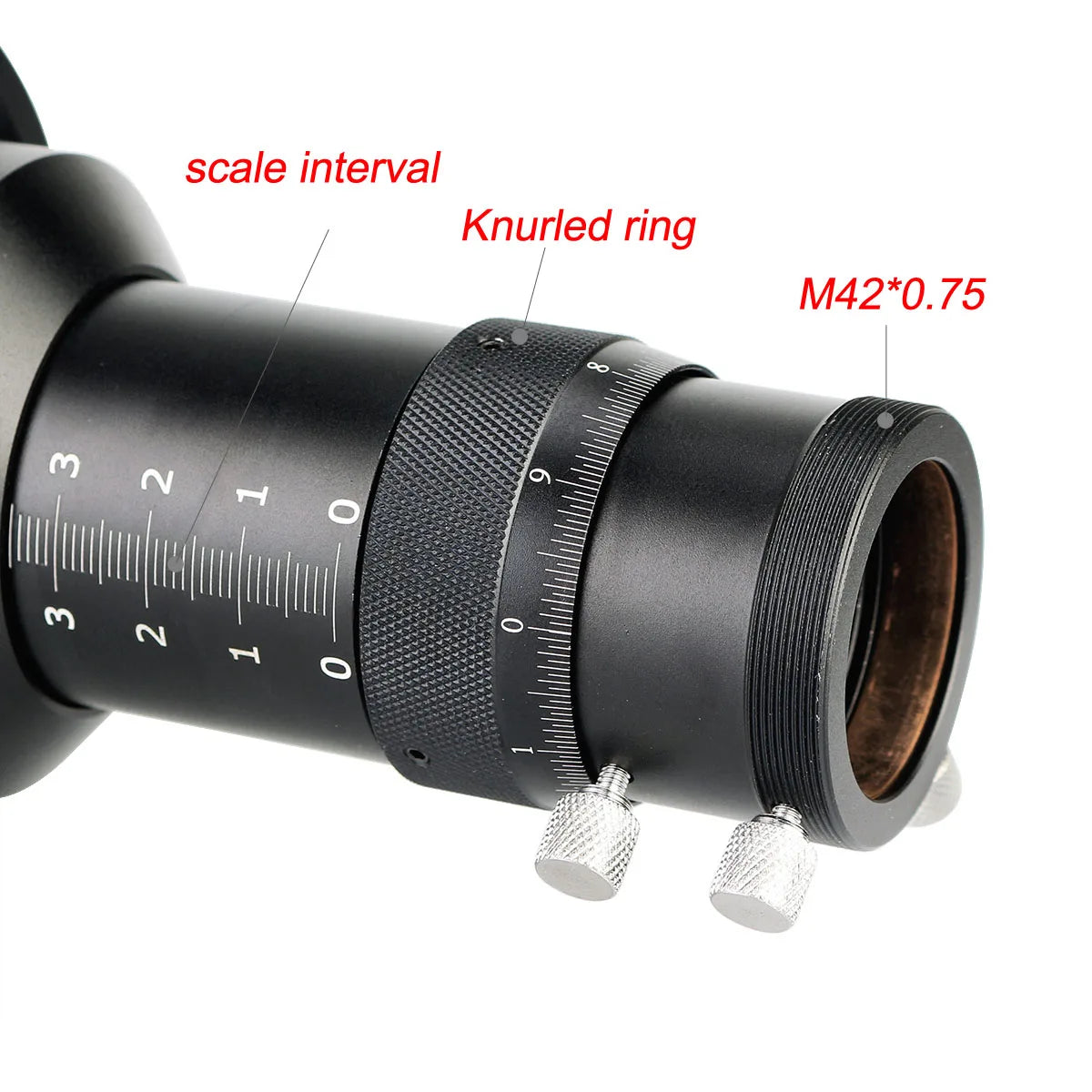

Featuring M42*0.75 and 1.25-inch interfaces, this Multi-Use Guide Scope is engineered for versatility. Securely attach guide cameras with female T-threads, and transform the guide scope into a straight-through finder scope by adding an optional 1.25" eyepiece. Fully immerse yourself in the celestial wonders with the convenience of interchangeable configurations.

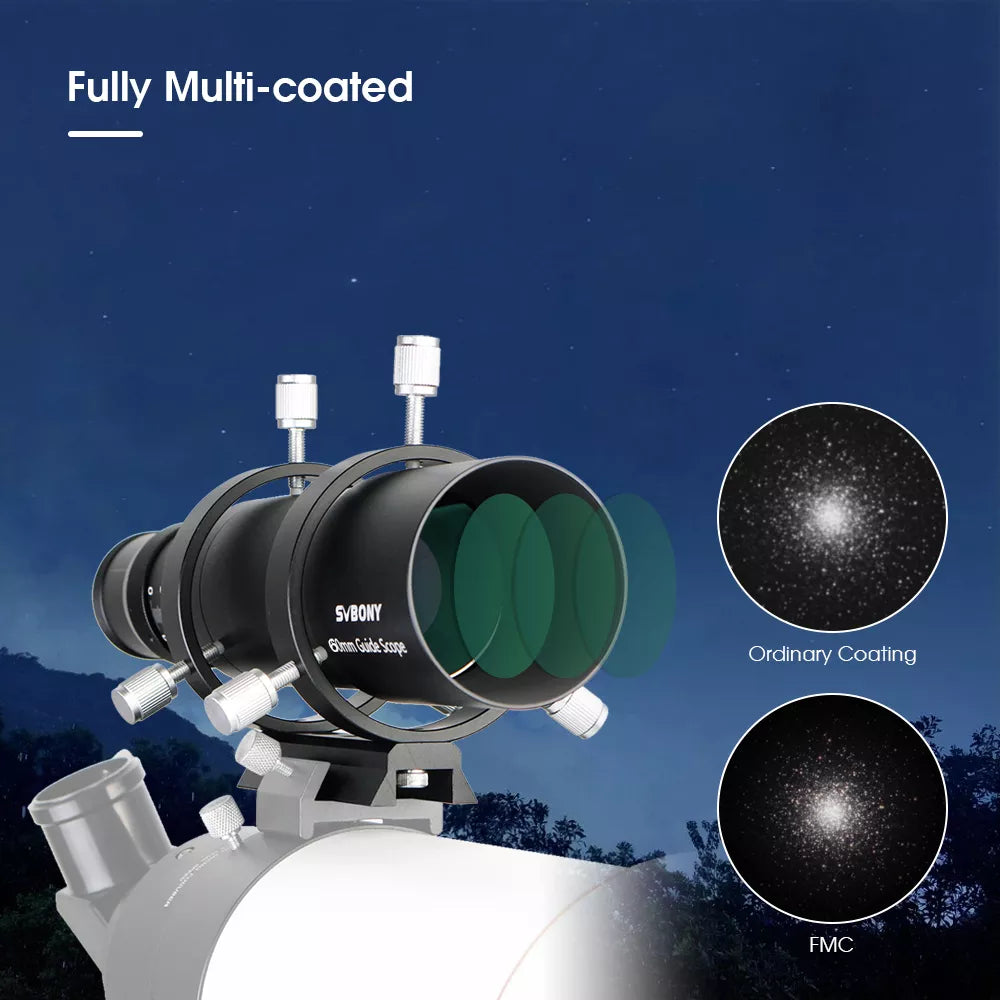

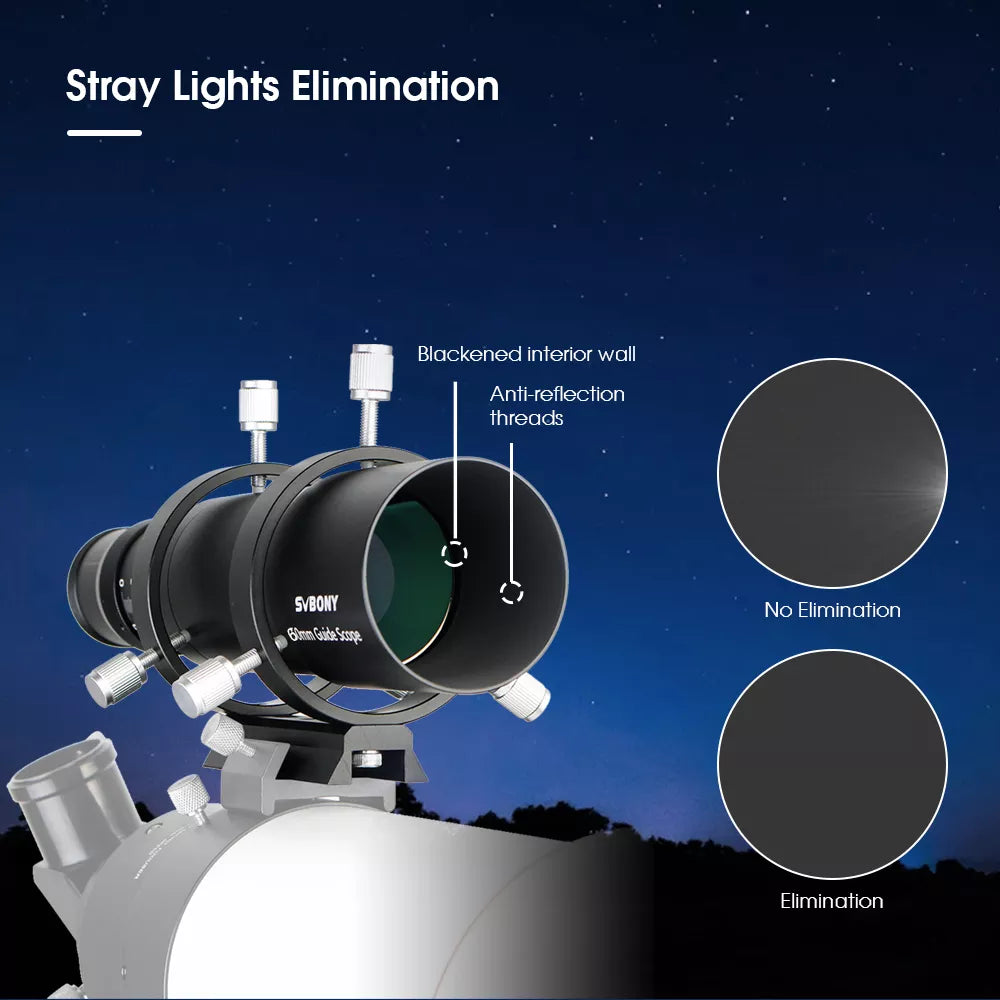

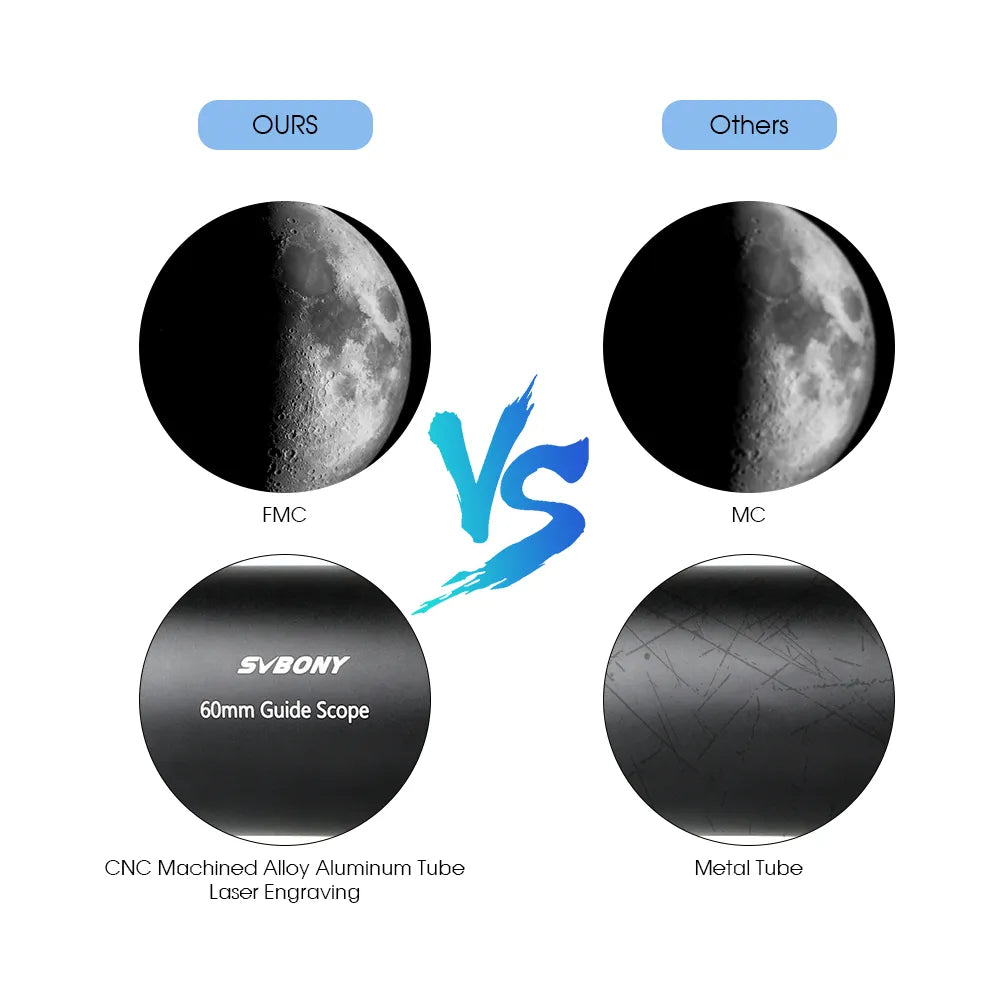

Experience superior optics with double-sided FMC (Fully Multi-coated) glass. Enjoy bright, clear, and crisp images, even in low-light conditions. The stray lights elimination design enhances observation efficiency by minimizing light loss due to reflection and improving image contrast.

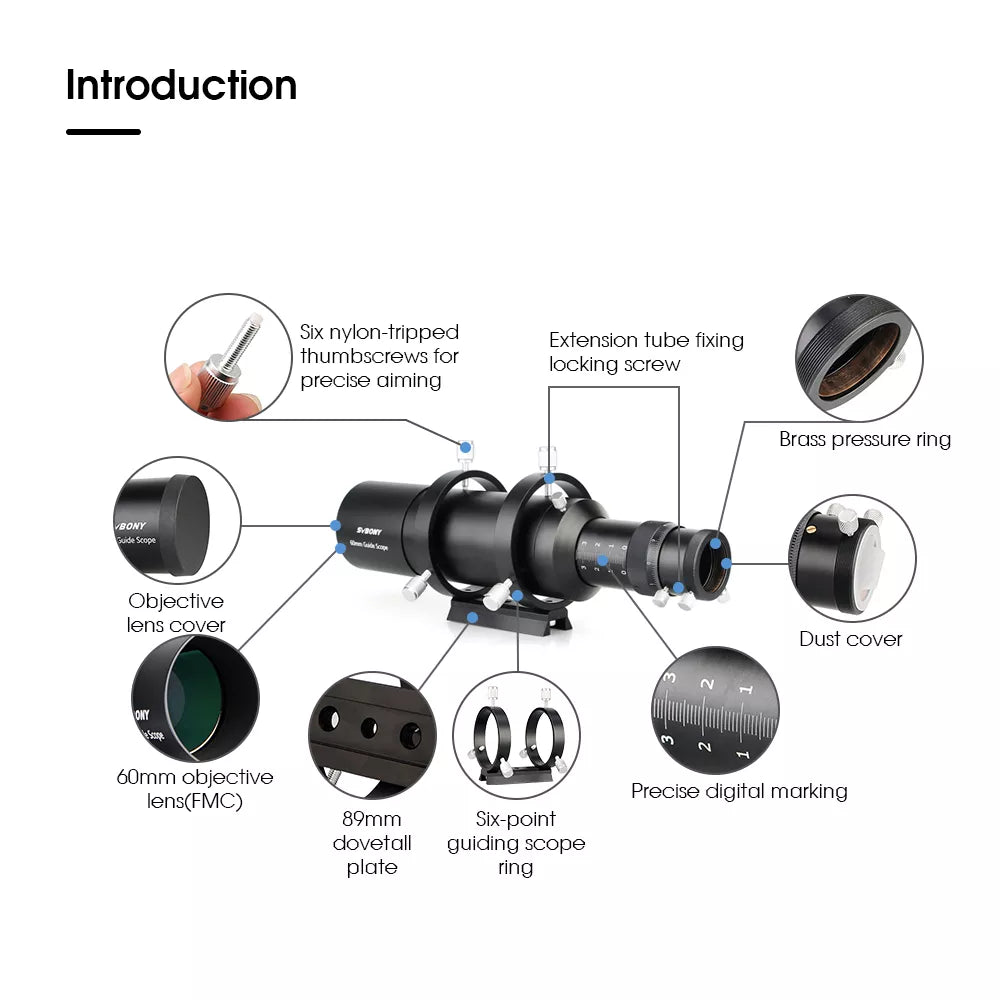

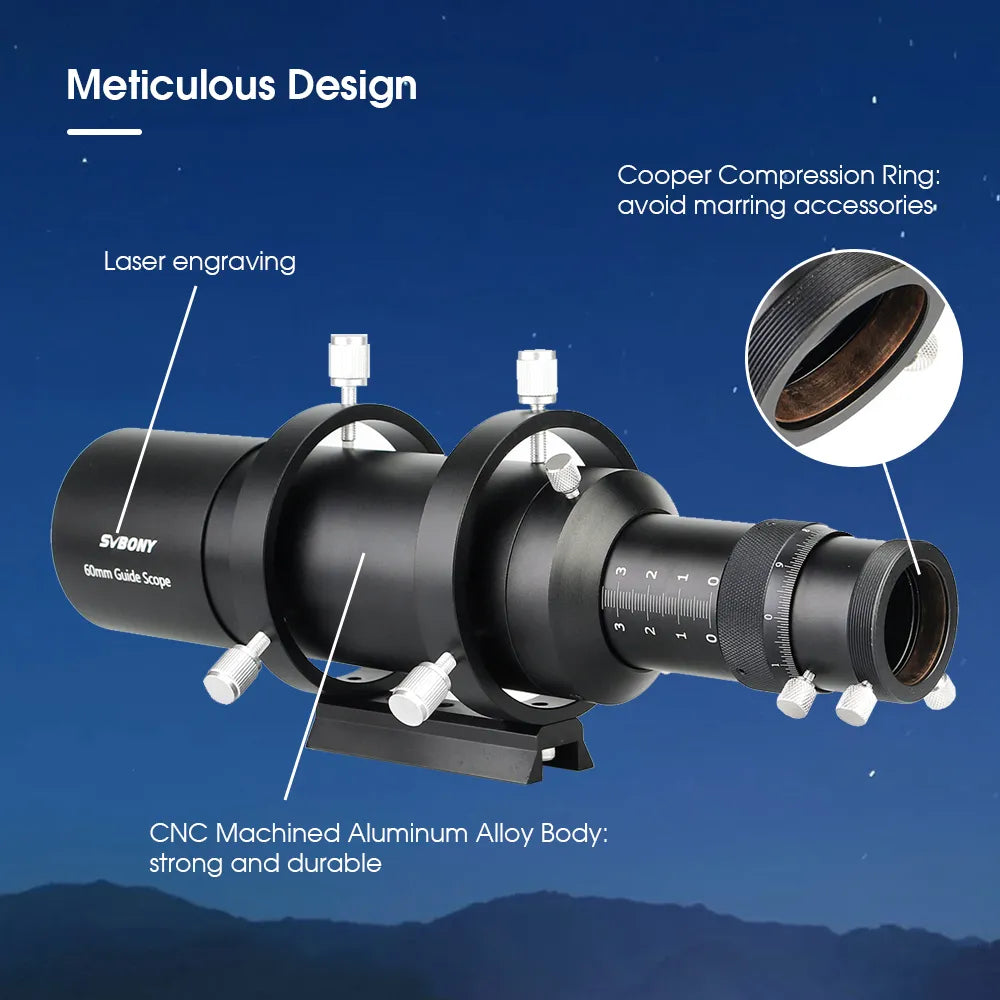

Meticulously designed, the Svbony SV106 50mm Guide Scope features a compression ring fitting to protect autoguider cameras and accessories from scratches. The CNC machined aluminum alloy body with laser engraving ensures durability for long-lasting performance.

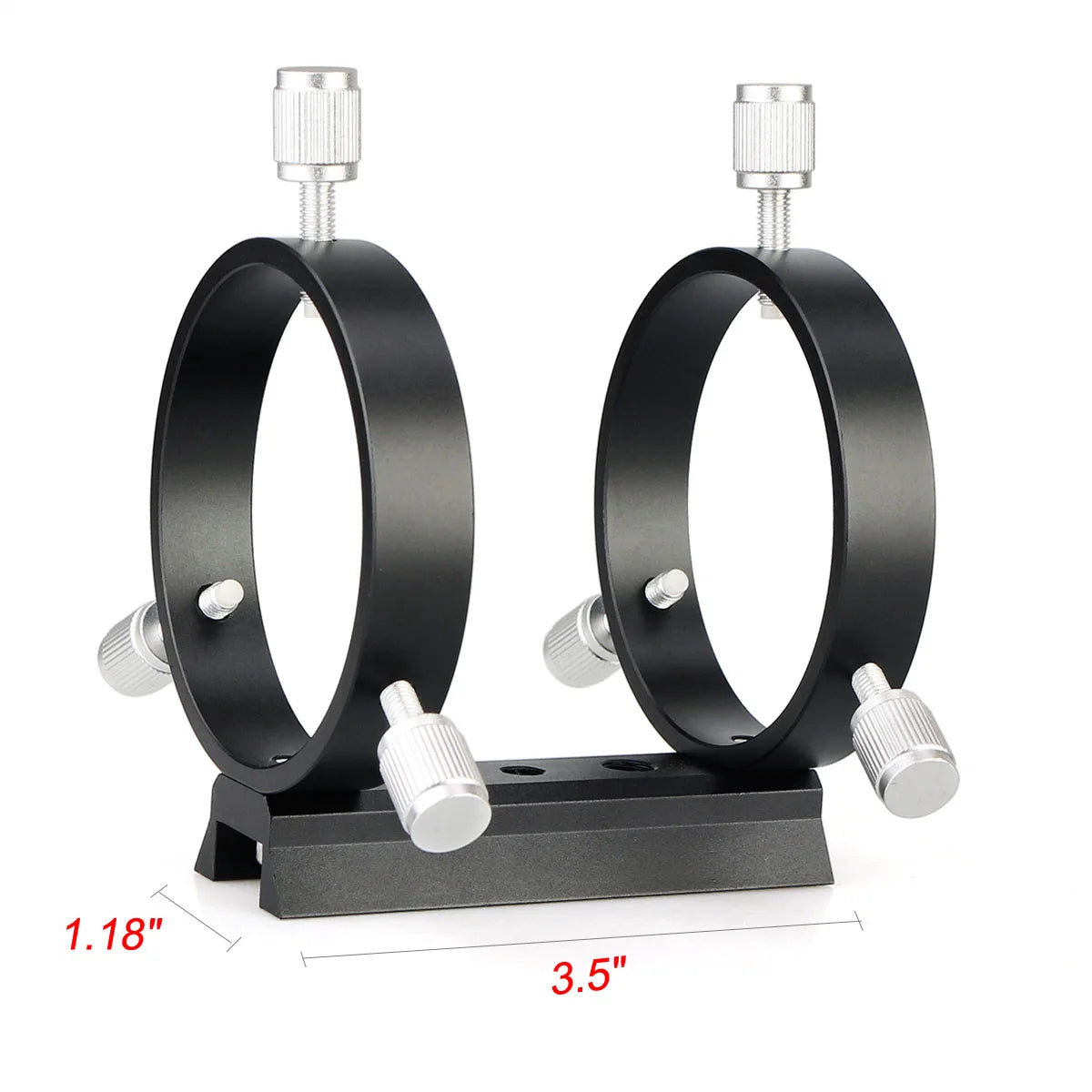

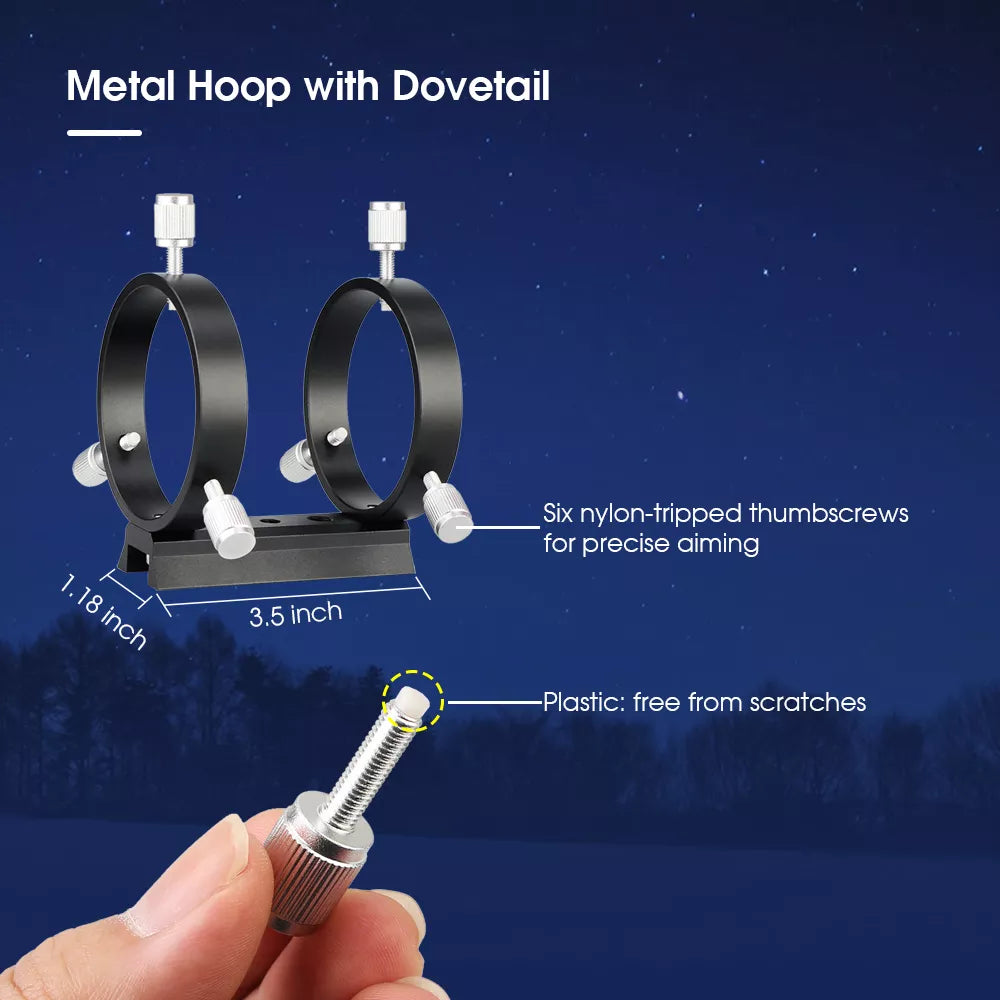

Fine-tune your focus effortlessly with the metal hoop and dovetail. The knurled metal hoop allows for precise adjustments, and the thumbscrew locks the focuser in place, providing stability during your observations.

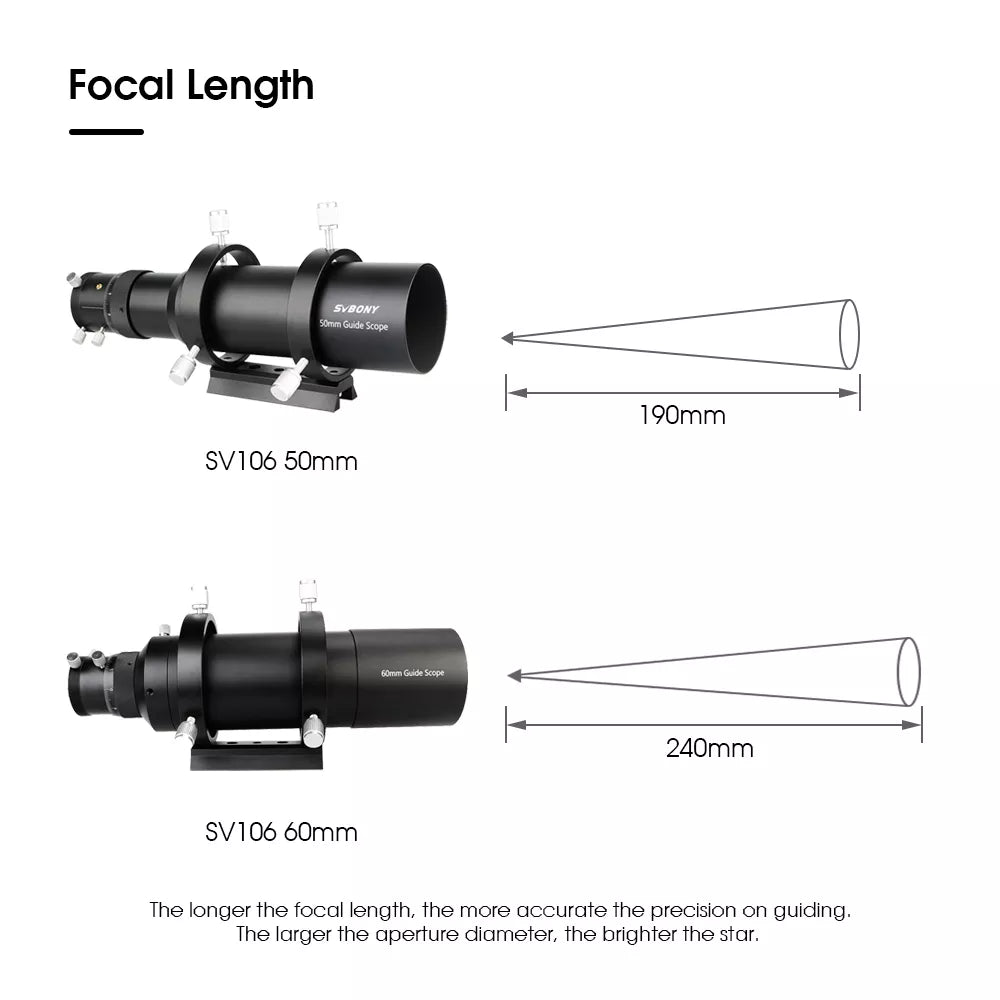

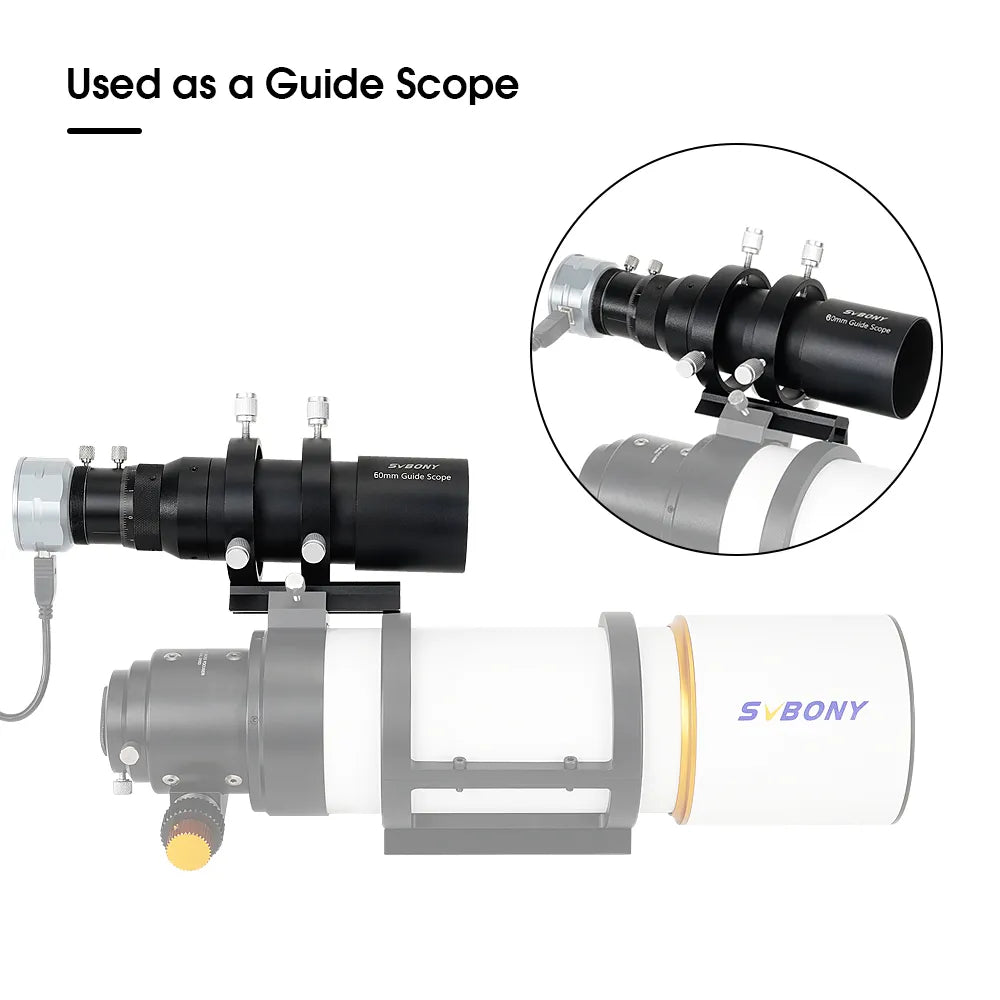

Used as a guide scope, the Svbony SV106 stands out with its focal length options of 190mm and 240mm, catering to your specific needs. The aluminum alloy construction, available in 50mm and 60mm apertures, ensures a lightweight yet robust design.

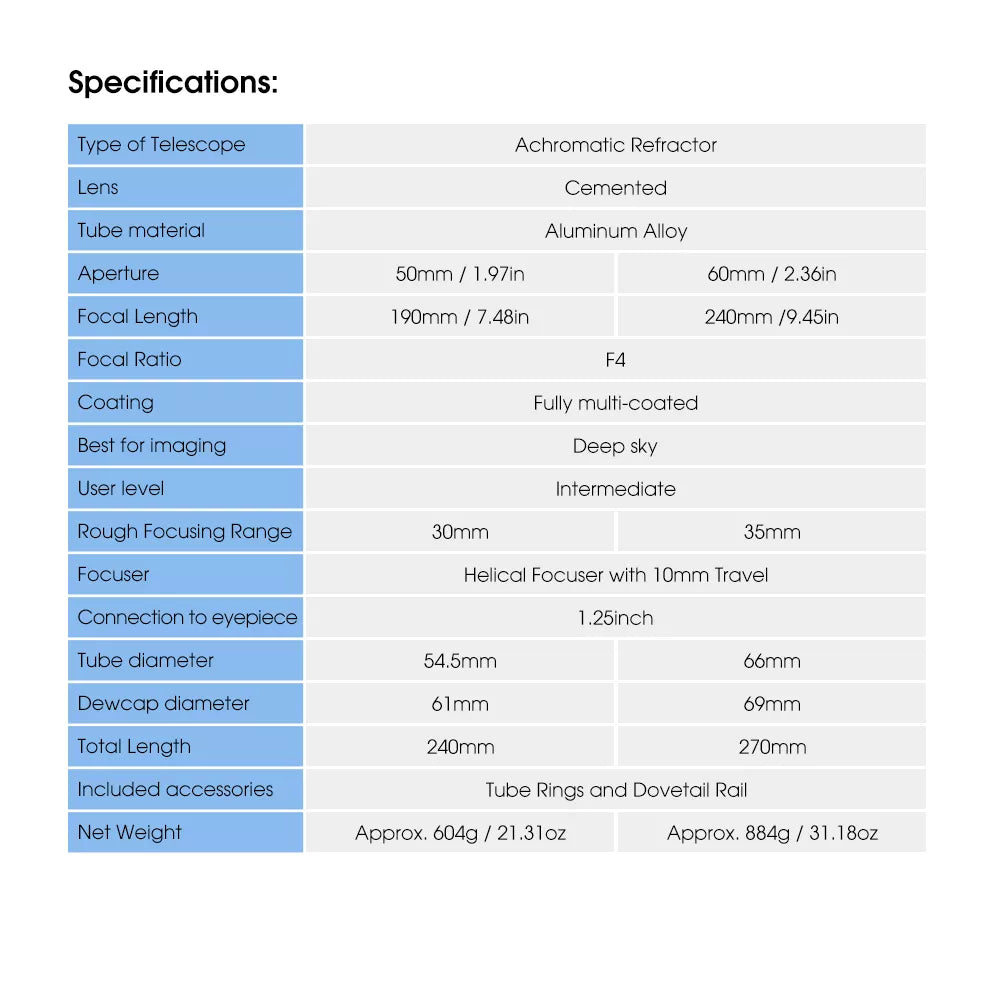

Specifications:

  • Brand Name: svbony
  • Model Number: SVBONY SV106
  • Tube Material: Aluminum Alloy
  • Aperture: 50mm / 1.97in, 60mm / 2.36in
  • Focal Ratio: F4
  • Coating: Fully Multi-coated
  • Rough Focusing Range: Helical Focuser with 8 mm Travel
  • Tube Diameter: 54.5mm / 66mm
  • Dewcap Diameter: 61mm / 69mm
  • Total Length: 240mm / 270mm

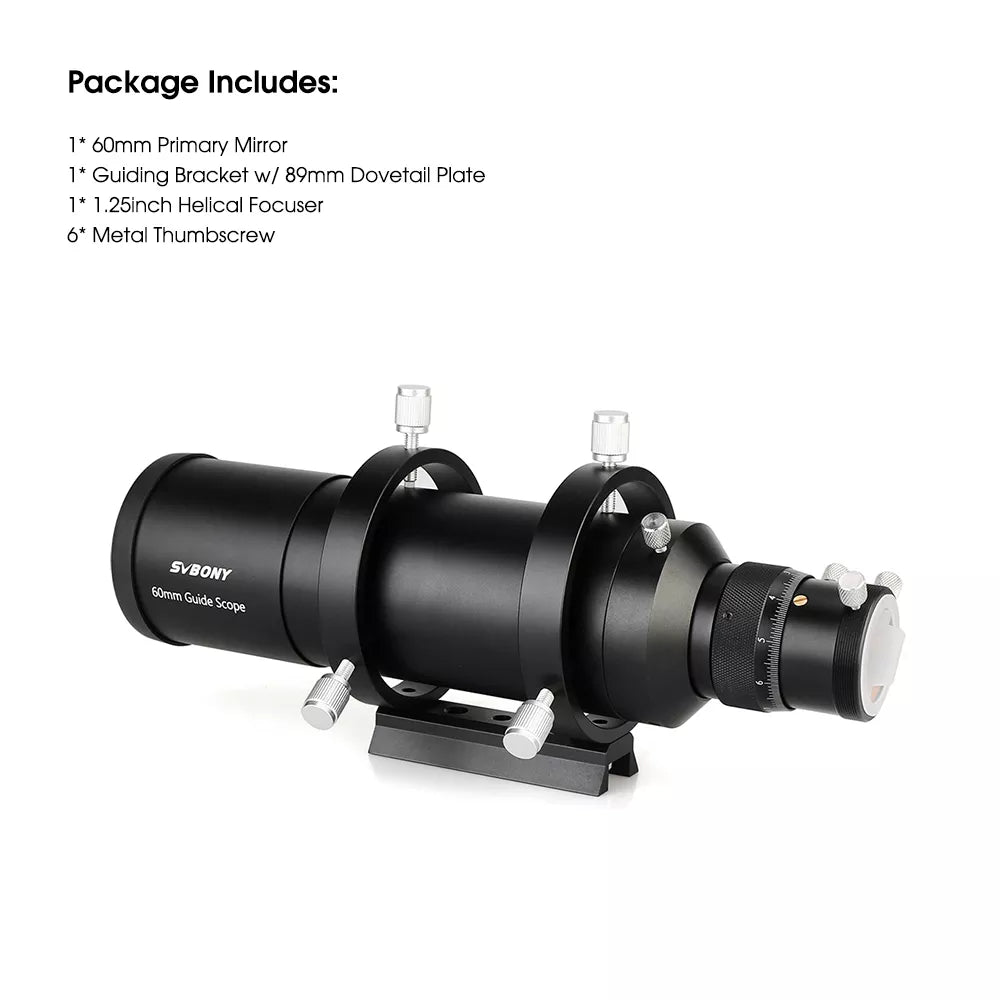

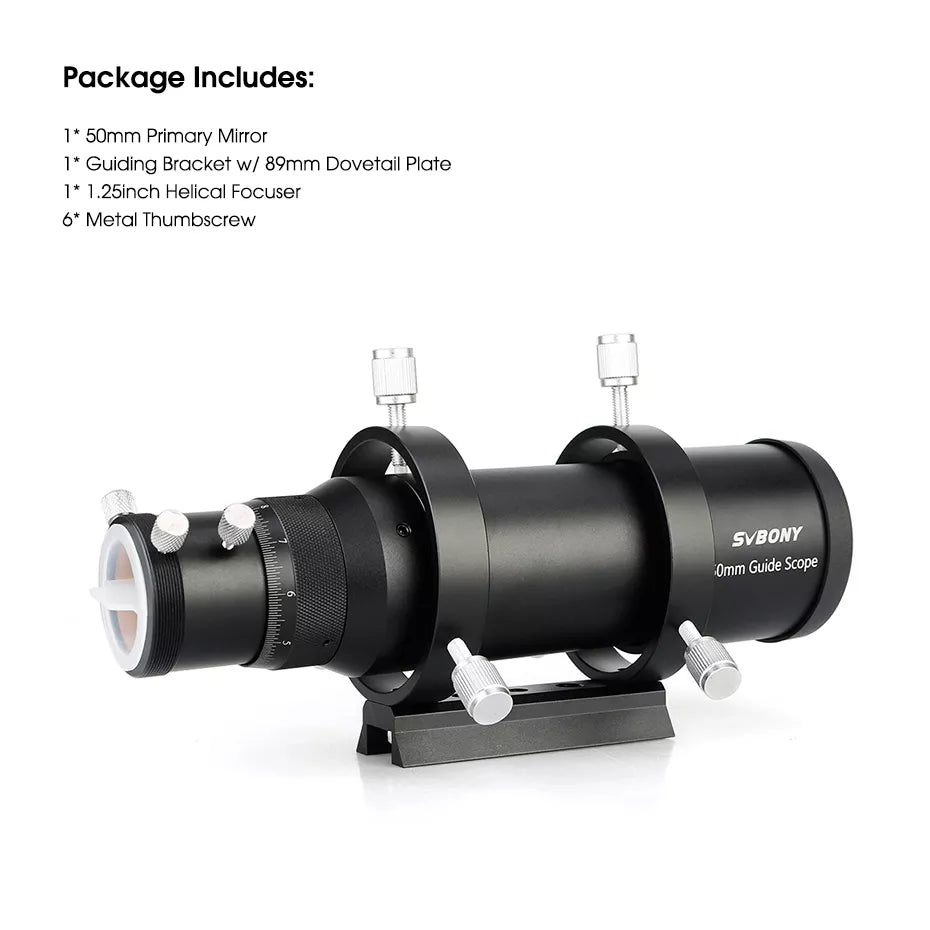

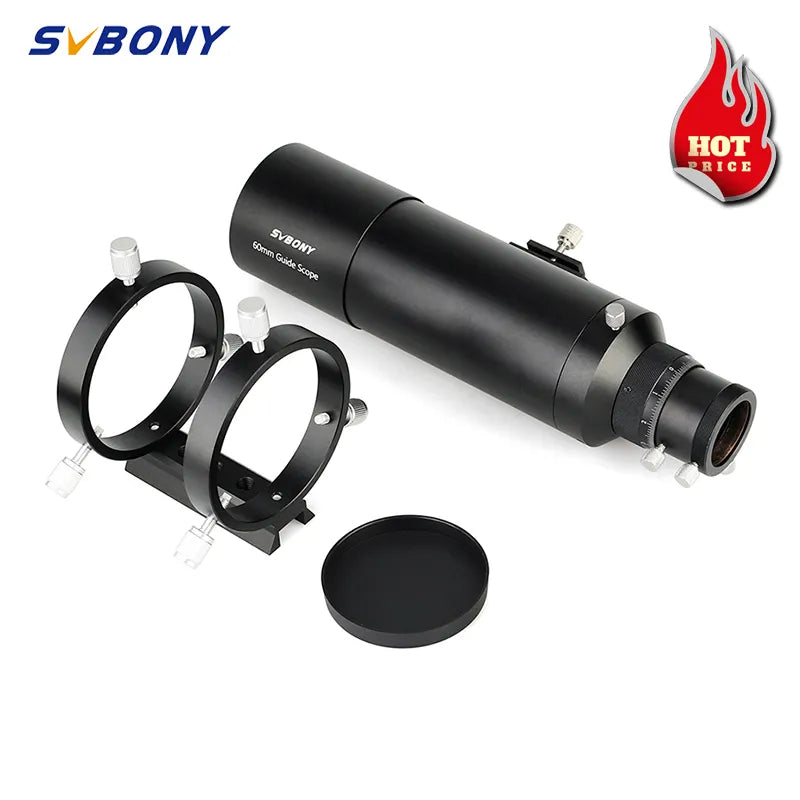

  • Included Accessories: Tube Rings and Dovetail Rail
  • Net Weight 1: Approx. 604g / 21.31oz
  • Net Weight 2: Approx. 884g / 31.18oz
  • Thumbscrew: M56/M33

Elevate your astronomical exploration with the Svbony SV106 50mm Guide Scope – your gateway to capturing the beauty of the cosmos.
